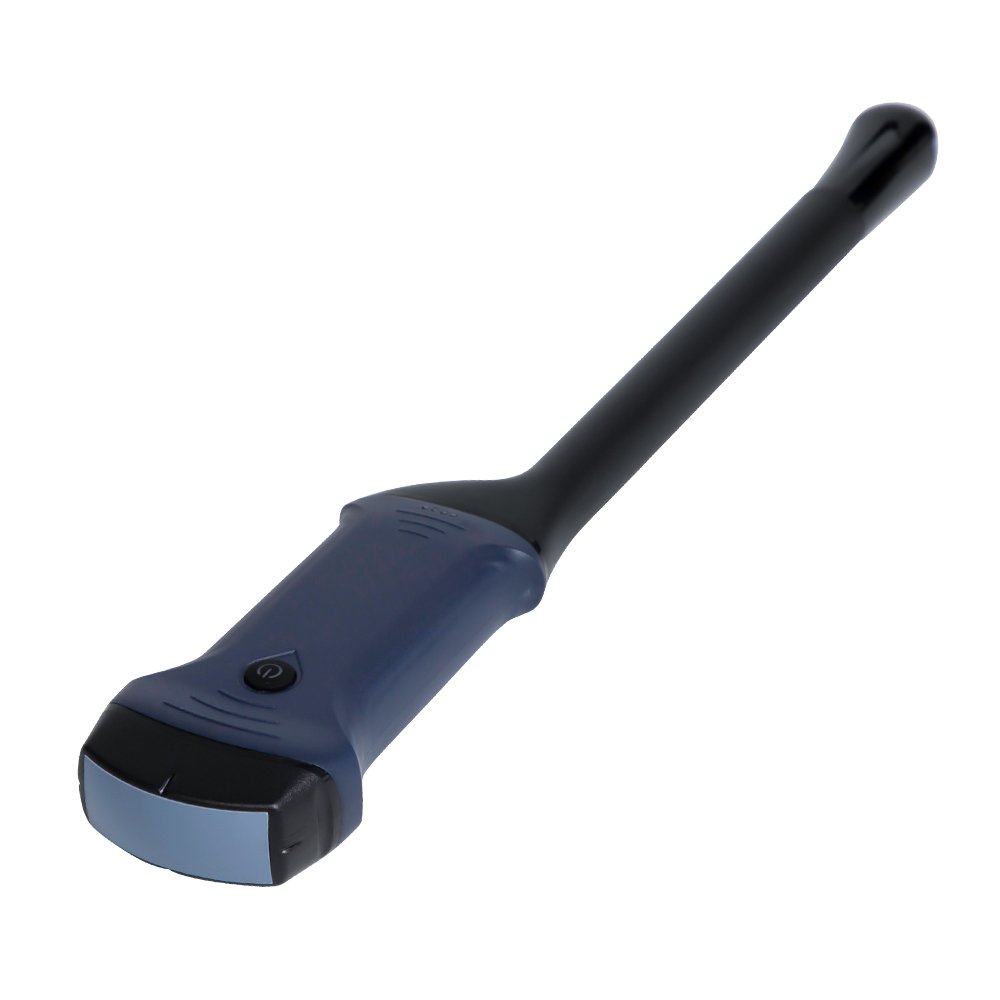

PX-CV10

  • Probe Type: Double Head — Convex + Trans-vaginal
  • Scanning Mode: Electronic Array
  • Channels: 64
  • Probe Elements: 128
  • Imaging Modes: B, B/M, Color Doppler, PW, PDI
  • Convex Frequency: 3.5 / 5 MHz
  • Convex Scan Depth: 90 / 160 / 220 / 305 mm
  • Trans-vaginal Frequency: 6.5 / 8 MHz
  • Trans-vaginal Scan Depth: 20 / 40 / 60 / 100 mm
  • Connection: Built-in Wi-Fi
  • Compatible Systems: iOS / Android / Windows
  • Image Frame Rate: 24 fps
  • Cine Loop: 100 / 200 / 500 / 1000 frames
  • Image Storage: JPG / AVI / MP4 / DICOM
  • Measurement Functions: Length, Area/Circumference, Angle, Trace, Distance, GA, EFW, Heart Rate, Time
  • OB Measurements: CRL, BPD, GS, FL, HC, AC
  • Applications: Abdomen, Gynecology, Obstetrics, Urology, Kidney and other general examinations
  • Languages: English, Russian, Italian, Spanish, Chinese, Portuguese (Brazil)
  • Battery Capacity: 2600 mAh
  • Working Time: Approx. 3 hours
  • Standby Time: More than 5 hours
  • Charging: Wireless charging supported
  • Battery: Replaceable
  • Dimensions: 316 × 56 × 26 mm
  • Weight: Approx. 224 g
  • Waterproof Design: Suitable for easier cleaning and disinfection
